W.I.P - Trumpeter 1/35 T-80BVD; Part 4

Right ... up date is due on this baby. Haven't touched it for a long time. I been on a vacation with sister and family friends.

Works continued on the Turret.
Last time, I left things here -

Before I work on it, I had some almost empty bottle of green paints so while cleaning them, I decided to spray all those green on the turret as a mean to serve as a primer so you will see a very light green painted turret on this update :P.

Anyway, I started putting on some of the things I need to put on.
This is the turret left side -

The search light at this point has no lenses install so as to make masking easier. The gunner sight comes closed which would be a PITA for some people who like to show the sights open but I don't mind; less masking job for me.

This is the turret back top -
I don't know what is that little thing is; it kind of looked like a speaker or a ventilator. The instruction calls for the little P.E parts to be closed but after careful dry fitting, I found out I can leave it open so I left it open as you can see from the photo. On top is the back search light ( or is it a convoy light? a little big for a convoy light no ? )

Turret left back -
I put on the last of the little box that we see on T-80s ( this is the third and last one on this T-80 version) along with a larger storage box on the turret rack.

Come backing to the front left again -
I put on the shade or cover for the gunner sight. I think this is the direct sight. Care was exercised not to overly apply the CA glue to avoid a very messy attachment.

After that, I moved on to the Commander Hatch and the RWS.
The whole thing is a quite complicated and it strained my eyes to the braking point. Luckily, having build the Zvezda T-90's commander hatch and MG, this is nothing. After about 3 swear/curse filled hours, I finally got it -

Back top view of the hatch and gun -

At this point, you will notice that I haven't put on the MG ammo box. I'm still thinking should I or should I not put on the ammo box at all.

After that, i moved on to the last piece I need to put on the turret; the big light ( is it IR or normal light or switch-able?) on the right side of the gun -

and Last but not least, the front lights. Again, no lenses are install so as to make masking easier.

Finally happy and confirming with the manual that I have nothing more to put on, I masked all the running gears and tracks and started painting.

Firstly , I gave it a blast of Tamiya Dark Green for base coat -

After that, I sprayed on Aircraft Grey from Mr. Hobby Aqueous -
The airfact grey I used is glossy but once I flat coated it, there shouldn't be a problem.

And Finally, finished off with VMA Black.

Since I am a very lazy guy and couldn't be bothered to mask, there were over-sprays but nothing a few precise re-spray of the previous colour couldn't fix.

And that's that. Almost complete. Next step is the weathering. Stay tuned for more. Thanks for reading.
Read more >>

Saturday 18 October 2014

W.I.P - Trumpeter 1/35 T-80BVD; Part 3

Update time.

This time- I will be focusing on the turret.
Started by gluing the two halves of the turret together. The turret comes with moulded on cast texture but it's a little soft but since I'm happy with this so I didn't put on the extra cast texture.This is how the turret looks -




After that, I started putting on the ERA blocks (this is the kontakt-1 bricks according to sources).I stared on the right cheek of the turret. Each single set up of the blocks involved 5 parts and it took quite a bit of effort and steady hands-



You can see in this photo the photo etch support that goes in between the upper and lower bricks -Image


Imagine doing that for 5 times. But that's not all. this is only just for this area.Followed that up with more block set-ups for the side.

The side blocks are vertically facing outward and these were quite fragile and fiddly so extra care has to be exercised.
Next, I moved on the the left cheek. For some reason, the blocks are set up in an easier way for the left cheek so rather then each individual blocks, I just had to do a whole row.Image

Still, not an easy job as you can clearly see on the photo.
That entire row goes on the left check along with some roof blocks on the edge of the cheek and side -Image


Followed up by the side blocks and SGLs -Image


Satisfied with this, I moved on to the back of the turret. I had to put on two little pieces of PE as indicated by the arrow. I don't know what they are but the manual say I have to so yeah.... and I also put on one of the boxes. What are those boxes anyway? Image


Next, I put on the turret basket. Image


while putting it on, I realise it was really wobbly at the bottom and after inspection, I found out that the two supports for the bottom of the basket is missing. I am not certain whether trumpy forgot to mould it entirely or I broke them or cut them in mistake. Regardless, I used the evergreen rods I have ready and made some fixing.


It's not glamorous but hey, it works.


After that, I put on the fording equipment. Bear in mind, this is not the big fording tube of the T-80BV. As far as I have looked, these are found on the T-80UD.Image

I also put on the 2nd box on the right side of the turret. The
upper portion of that little rack is empty as I haven't put on the machine gun ammo box yet. I want to paint them first in different colours so I'm leaving them off until I painted them.
Next, I moved on to the gunner hatch. For a hatch, this were is some intricate steps and engineering involved.

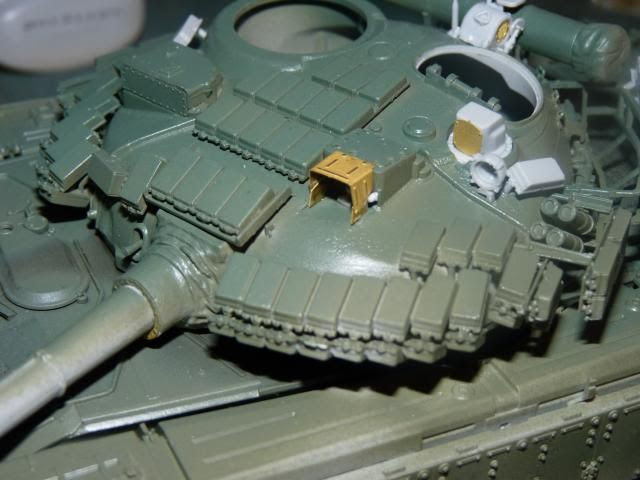

I then put on 3 of the P.E parts on the roof and sights and the base of the gun. At this point, I have glued the two halves of the gun together and now, this is how the model looks -Image
